The AS41 Engine Build

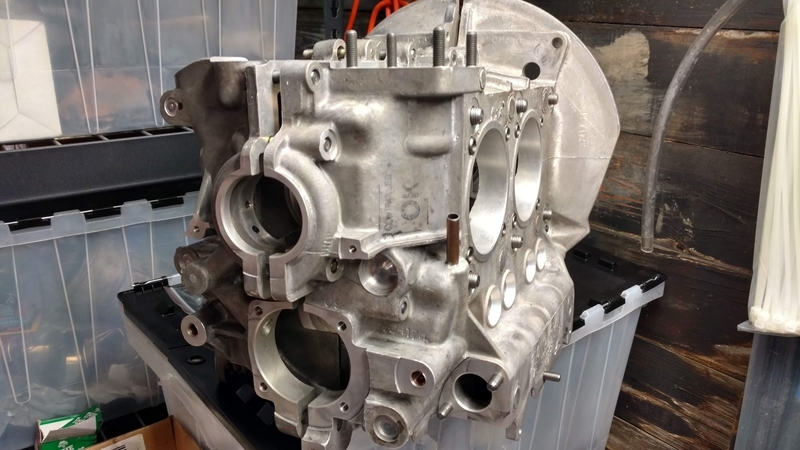

This new AS41 universal case ended up being purchased on sale at Mid America Motorworks on the spur of the moment in 2018, If I had been in the right frame of mind I would have just bought a case bored for 94mm and clearanced for stroker crankshafts.  However, I ended up just getting a stock 85mm case.

I had no real plan for this case prior to April 14, 2019 when I decided to stop using the 45 year old AH case for me new build and shift to this brand new 0 mile case. Everything else I had bought was pretty much brand new, so why not just use this case instead.

So everything, regardless of state of completion, has shifted to this new case.

4/21/2019 2019 AS41 New Build
Part Vendor Part Description
Alternator – Alternator IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Alternator – Oil Filler IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Alternator – Stand IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Alternator – Stand Gasket IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Alternator – Strap/Clasp IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Carb – Carburettor Dual 34 EPC 34 Carburetor Kit
Carb – Gasket Dual 34 EPC 34 Carburetor Kit

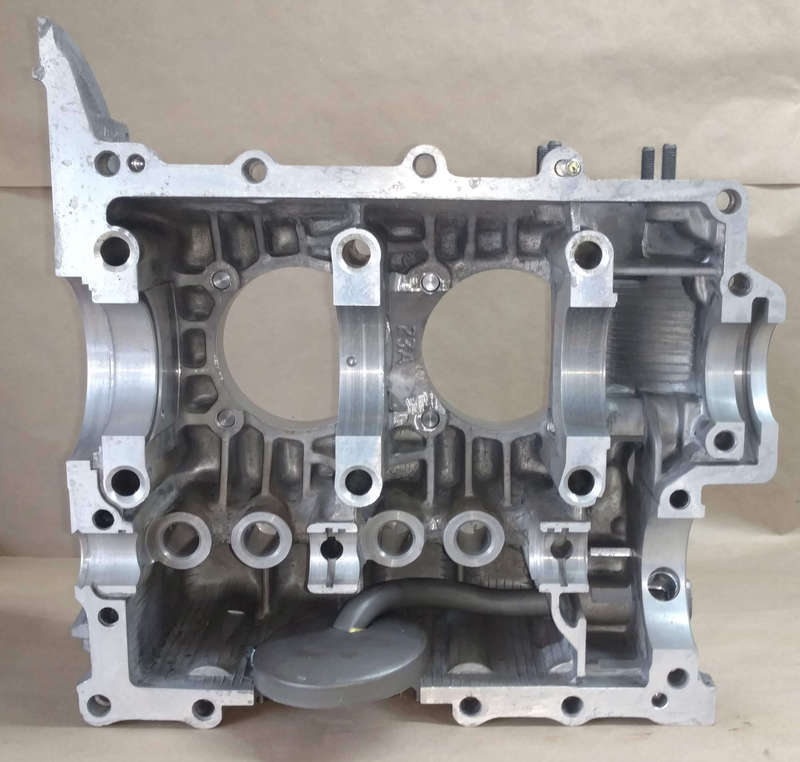

Case – Block New Brazil AS41 Case
Case – Case Savers 8mm
Case – Cylinder Studs Cylinder Head Stud Kit 8MM
Case – Full Gasket Set PERFORMANCE ENGINE GASKET SET
Case – Hex Style Oil Relief Screws Oil Piston Relief Plug, Hex x 2
Case – HW Kit Deluxe Engine Hardware Kit 8MM
Case – Main Journal Bearings Type 1 Main Journal Performance Bearing Set
Case – Main Journal Dowel Pins SET OF 5 DOWEL PINS FOR MAIN BRG
Case – Trans to Engine Bolts/Studs Engine Mounting Bolt Kit × 2
Crank – Connecting Rod Bearings KS Kolbenschmidt Rod Bearings
Crank – Connecting Rod Bushings Connecting Rods, Stock 1600cc, New
Crank – Connecting Rods Connecting Rods, Stock 1600cc, New
Crank – Crank Pulley VW Crank Pulley, Solid, Black Markers
Crank – Crank Pulley Bolt Mighty 8.8 Crank Bolt and SS Washer
Crank – Crank Pulley Washer Mighty 8.8 Crank Bolt and SS Washer
Crank – Crankshaft 69MM Volksaver 8 Dowel Crankshaft
Crank – Timing Gears and Spacers Crankshaft Gear Assembly
Cylinders Heads – Heads EMPI GTV-2 Dual Port Cylinder Head – Single Hi-Rev Springs 98-1331-B
Cylinders Heads – Shims Not needed on this specific build
Drivetrain – Clutch – Friction Disk LuK 17-013 Clutch Set
Drivetrain – Clutch – Pressure Plate LuK 17-013 Clutch Set
Drivetrain – Clutch – Throwout Bearing LuK 17-013 Clutch Set
Drivetrain – Flywheel 200MM CAST IRON FLYWHEEL – LIGHTENED / BALANCED / 8 DOWELED
Drivetrain – Flywheel 8-Dowel Gasket 8 Dowel Flywheel Gaskets (Set of 10)
Drivetrain – Flywheel Dowel Pins 69MM Volksaver 8 Dowel Crankshaft
Drivetrain – Flywheel Gland Nut Chromoly 1 1/2″ Hex Gland Nut & Heavy Duty Washer Set
Drivetrain – Flywheel Gland Nut Washer Chromoly 1 1/2″ Hex Gland Nut & Heavy Duty Washer Set
Drivetrain – Flywheel O-Ring FLYWHEEL O-RING SEAL
Drivetrain – Flywheel Seal Elring Flywheel Seal
Drivetrain – Flywheel Shims .24MM New if needed
Drivetrain – Flywheel Shims .30MM New if needed
Drivetrain – Flywheel Shims .32MM New if needed
Exhaust – Heat Exchanger – Left Not needed on this specific build
Exhaust – Heat Exchanger – Right Not needed on this specific build
Exhaust – J-Pipe – Left  J-Pipe, Left And Right
Exhaust – J-Pipe – Right  J-Pipe, Left And Right
Exhaust – Merged Header Not needed on this specific build
Exhaust – Muffler EMPI – PEA SHOOTER – 2-TIP EXHAUST
Exhaust – Muffler Gasket Set VW Muffler Installation Kit, Type 1, 1200-1600cc Beetle
Exhaust – Muffler Tail Pipes Not needed on this specific build
Fuel – Fuel Pump Brosal Stock Fuel Pump
Fuel – Fuel Pump Flange Fuel Pump Flange
Fuel – Fuel Pump Rod New if needed
Fuel – Rubber Hose 3ft Armor Mark 1/4″ fuel line
Fuel – Steel Line – Pump to Tunnel New if needed
Ignition – Coil Reuse Bosch 00012/9220081083 Ignition Coil from 10/4/2017
Ignition – Distributor EMPI Generic 009 Distributorz
Ignition – Distributor Clamp New if needed
Ignition – Distributor Drive Gear Pinion Reproduction Distributor Drive Gear Pinion
Ignition – Distributor O-Ring VW Distributor Shaft O-ring, Beetle
Ignition – Distributor Spring Distributor Spring, Stock
Ignition – Spark Plug Wires Bosch 09001 Premium Spark Plug Wire Set
Ignition – Spark Plugs NGK B6HS Spark Plug, 14mm 1/2 inch Reac
Oil – Breather Kit Not needed on this specific build
Oil – Drain Plate
Oil – Gallery Plug Kit Oil Gallery Plug Kit
Oil – Oil Cooler Reuse from AH206906
Oil – Oil Cooler Seals PERFORMANCE ENGINE GASKET SET
Oil – Pressure Switch Oil Pressure Sending Unit
Oil – Pump Schadek Oil Pump H-D 26MM Gears
Oil – Pump Cover Plate Billet 8MM Oil Pump Cover
Oil – Pump Gasket Inner Schadek Oil Pump H-D 26MM Gears
Oil – Pump Gasket Outer Schadek Oil Pump H-D 26MM Gears
Oil – Pump Seal 8mm Nuts Oil Pump Sealing Nuts (4 Pack)
Oil – Strainer Reuse from AH206906
Other – Thermostat THERMOSTAT – (Mexico Style)
Other – Thermostat Bracket THERMOSTAT BRACKET
Other – Thermostat Rod Reuse from AH206906
Pistons and Cylinders – Copper Gaskets Not needed on this specific build
Pistons and Cylinders – Set of 4 87MM 1641CC SLIP IN PISTON & CYLINDER
Tin – Accelerator Cable Tube Reuse from AH206906
Tin – Alt/Gen Cover IAP Performance AC903900EC 60 Amp Alternator Kit for VW Beetle
Tin – Cylinder Air Vanes Assembly Not needed on this specific build
Tin – Cylinder Deflectors, Bottom Not needed on this specific build
Tin – Cylinder Head Internal Deflector Reuse from AH206906  Original Heads
Tin – Cylinder Heads BLACK DUAL PORT CYLINDER TIN
Tin – Doghouse Shroud Reuse from AR039953
Tin – Doghouse Shroud Rubber Seals New
Tin – Fan LATE VW TYPE 1 ENGINE FAN, 1971 – 1979
Tin – Fan – Hub Kit VW Type 1 Fan Hardware Kit
Tin – Fan Shroud – Throttle Tube Seals PLUG THROTTLE TUBE HOLE BEETLE 71-79
Tin – Fan Venturi Ring Not needed on this specific build
Tin – Front Firewall Reuse from AH206906
Tin – Heater Box (3 piece) 3 PIECE HEATER BOX TIN
Tin – Hoover Bit Hoover Bit
Tin – Ignition – Coil Cover Reuse from AR039953
Tin – Oil Cooler Tin Lower Seals Lower Oil Cooler Tin and Seals
Tin – Oil Cooler, Lower Lower Oil Cooler Tin and Seals
Tin – Oil Cooler, Upper Reuse from AH206906
Tin – Rear Engine VW Rear Engine Tin, Black, w/ Hose, w/o Heat Riser
Tin – Rear Pulley VW Engine Pulley Breast Plate Tin, Black
Tin – Screws 6MMX12MM Reuse from Consumables
Tin – Seal – Front Fuel Line Grommet Fuel Line Grommet for Front Tin
Tin – Small Deflector Left Not needed on this specific build
Tin – Small Deflector Right Not needed on this specific build
Tin – Type 3 Cyl Air Deflector (optional) Type 3 Cooling Tin, Pair
Tin – Valve Cover Valve Cover Kit, Bolt On, with Hardware and Gaskets, Aluminum
Tin – Valve Cover Bails Valve Cover Kit, Bolt On, with Hardware and Gaskets, Aluminum
Valvetrain – Camshaft Scat VW 20050 CAMSHAFT & ACC Cam Kit with C20 Cam – Single Springs
Valvetrain – Camshaft Bearings Silverline Doube Thrust Cam Bearings
Valvetrain – Camshaft Gear Scat VW 20050 CAMSHAFT & ACC Cam Kit with C20 Cam – Single Springs
Valvetrain – Camshaft Gear Bolts Camshaft Gear Bolts and Washers
Valvetrain – Camshaft Lifters Scat VW 20050 CAMSHAFT & ACC Cam Kit with C20 Cam – Single Springs
Valvetrain – Camshaft Plug Cam Plug (with O Ring) Billet
Valvetrain – Pushrod Tubes PUSH ROD TUBE x 8
Valvetrain – Pushrods Reuse from AH206906
Valvetrain – Rocker Arms Rocker Arms, 1963-1979 Forged Assemblies 1.25 Ratio, Pair
Valvetrain – Rocker Arms – Feet Rocker Arms, 1963-1979 Forged Assemblies 1.25 Ratio, Pair
Valvetrain – Rocker Arms – Shaft Rocker Arms, 1963-1979 Forged Assemblies 1.25 Ratio, Pair
Valvetrain – Valve Lash Caps Not needed on this specific build
Valvetrain – Valve Springs EMPI GTV-2 Dual Port Cylinder Head – Single Hi-Rev Springs 98-1331-B
