VW Beetle - Tin repainting

AH Engine – Rebuilding – Engine Tins – Part 1

Posted on 2018-12-192018-12-21

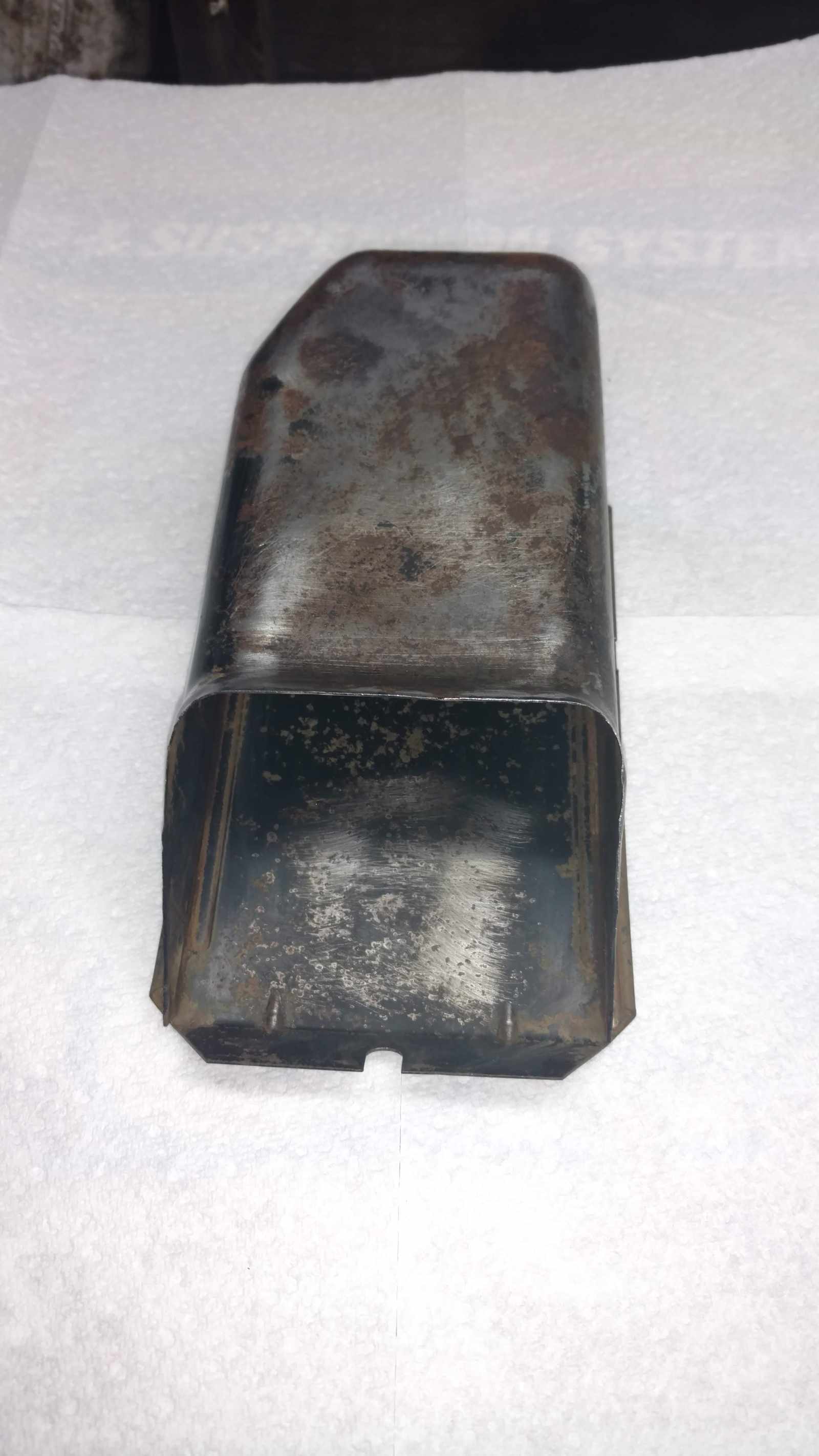

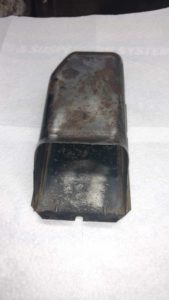

VW Beetle - Tin restoration
VW Beetle – Tin restoration

For those who have no experience with air-cooled engines, the initial exposure to the workings of the engine, as well as all of the metal tin pieces wrapped around the engine components may seem baffling at first. But the importance of engine tins isn’t just a nice thing… it is a crucial design element to the engine itself.

Originally, the plan for the AH engine rebuild was to clean and restore all the existing tins since they were complete. Unfortunately, after the tear down began, I ended up having to damage some of the main tins just to remove them from the case. Others I discovered to be basically unusable, especially those under the engine. So basically, I had to seek out and source replacements for some, and try and clean and repair others. I had also purchased what I was told was a 1600 DP engine back in autumn 2017 that was going to be my first rebuild. I ended up changing plans but had disassembled all of the tins off that engine and stored them. When I finally did dig them out I discovered that the tins were a hodge-podge, with FI cylinder tins on a 1300cc block, with a 71-74 fan shroud, and then other missing parts.

The plan for the rebuild also changed when I decided to put basic dual carburetors on it, which changed the tin type yet again since there would no longer be any need for heater pipe intakes. And then I did some reading and research I decided I’d see what it was like to use Type 3 cylinder deflectors instead of the small ones normally one a Type 1.

And thus was born, my own hodge-podge of tins for the AH rebuild.

Tin Source
Tin – Accelerator Cable Tube From AH Engine
Tin – Alt/Gen Cover From New Alt Kit
Tin – Cylinder Air Vanes Assembly n/a
Tin – Cylinder Deflectors, Bottom n/a
Tin – Cylinder Head Internal Deflector From AH Engine
Tin – Cylinder Heads New
Tin – Fan New
Tin – Fan – Hub Kit From New Alt Kit

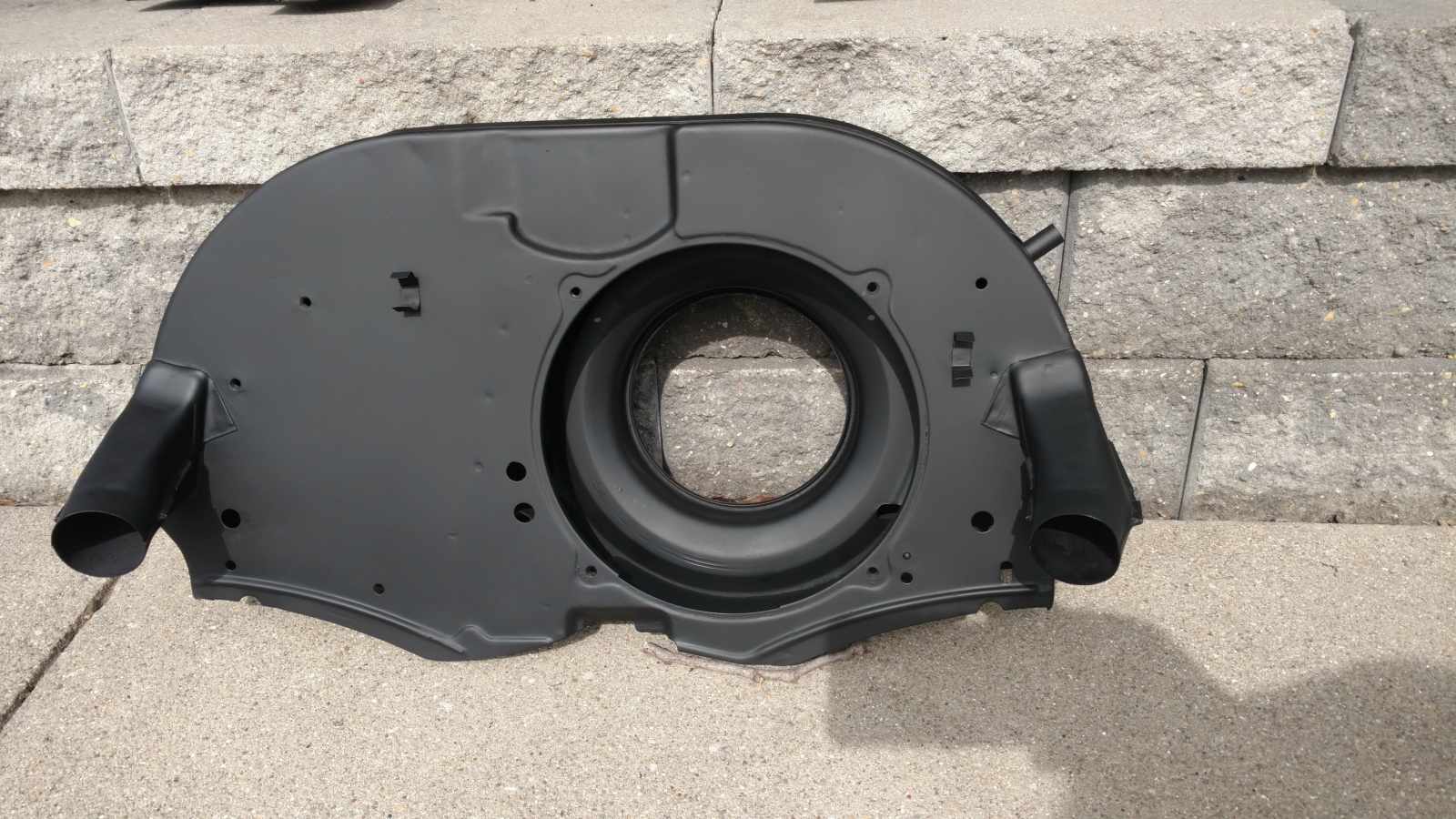

Tin – Fan Shroud From AR Engine
Tin – Fan Shroud – Throttle Tube Seals New
Tin – Fan Venturi Ring n/a
Tin – Front Firewall From AH Engine
Tin – Heater Box (3 piece) New
Tin – Hoover Bit New
Tin – Ignition – Coil Cover New
Tin – Oil Cooler Tin Lower Seals From AH Engine
Tin – Oil Cooler, Lower From AH Engine
Tin – Oil Cooler, Upper From AH Engine
Tin – Rear Engine New
Tin – Rear Pulley New
Tin – Seal – Front Fuel Line Grommet New
Tin – Small Deflector Left From AH Engine
Tin – Small Deflector Right From AH Engine
Tin – Type 3 Cyl Air Deflector (optional) New
Tin – Valve Cover New
